Our Products

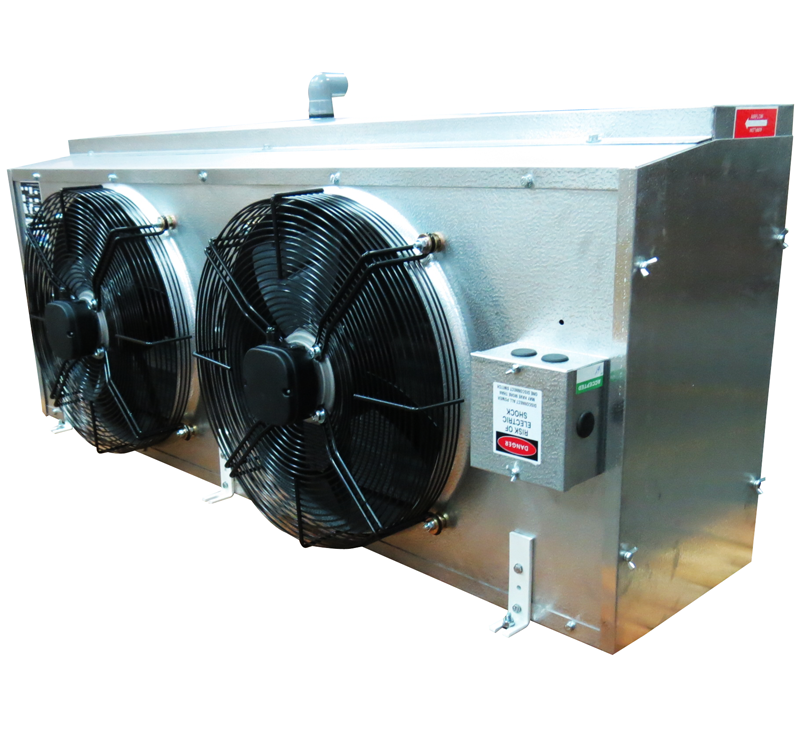

Unit Cooler

Housing:

• Self supporting construction made of texture corrosion resistance Stucco Embossed Aluminium, which enable for easy cleaning.
• Water drainage is made of union connection size of 1"Ø.
• Brackets for ceiling-installation are made of 5mm thick mild-steel.

• Finned coils are designed with corrugated surface, sin wave, aluminium fin.  Available fin size is from 4 FPI ~ 6 FPI (Fin Per Inch).
• Copper tube size is at 12.7mmØ and 9.5mmØ.
• All coils are pressure tested to 350 ~ 400 PSIG.

• Both axial fan, designed for low noise level.
• Motor Protected with internally wired thermal contacts.
• For room temperature from -30°C to +40°C.
• EBM Sickle Blade fan – Germany.
  • Protection class is IP 44
  • Insulation Class for 14"Fan Motor = Class B, 18"Fan Motor = Class F
• Ziehl-Abegg Square Blade fan – Germany
  • Protection class is IP 54
  • Insulation Class for 20"Fan Motor = Class F
• McAir Sickle Blade fan
  • Insulation Class for 18"Fan Motor = Class B
• OR equivalent capacity’s fan.

Defrost:

• For EP Model - Electrical coil and drain pan heater are wired to terminal block enclosed within a junction box.

• Fin can be in Aluminium or Copper fin.
• Fin spacing: 3 FPI / 2 FPI for blast freezing application
• Chemical coated (Heresite coating) is available for aluminium or copper fin.
• Chilled Water or brine solution system.
• Stainless Steel casing.
• Thermal Overload is fitted for low temperature unit ‘EP Models’ Unit Cooler to prevent heater overheating.
• Floor mounting type.

• For unit operation below room temperature -30°C or evaporating temperature below -35°C, please contact our sales representative for advice.
